3 Modular Circuits for Machine Control
Knuckles
3.1 Introduction
Many machine controllers (and most that are open source) are controlled with monolithic control boards, where the control logic is centralized and boards include a limited set of IO devices (motor drives, inputs etc). It is common to repurpose monolithic boards to control machines that they were not originally intended for, but this practice can quickly hit limits (2.2). I won’t belabor the point, modular systems have advantages that are probably familiar to readers of this thesis.
There is a growing trend in open hardware towards modular circuit ecosystems, but they hadn’t emerged when I was starting this work. Also, most industrial automation systems are already modular, but are not hackable. Without a herculean reverse engineering effort, I would not have been able to use them to develop the other methods in this thesis, many of which require that I make edits to fairly low levels in the controllers. So, following in a long Center for Bits and Atoms tradition, I developed my own set of modular circuit hardware.
This system of circuits was a key enabler of the methods and systems that I developed in this thesis, but there is nothing completely new or unique about the hardware itself; my contributions are in the networks (2.3), programming models (2) and controllers (4, 5 and 6). It is best to consider this chapter as a methods section, with some discussion on the design and use of modular circuits as a practice - and how that practice connects to the architectural topics raised in other chapters. In another lens this is a motivating chapter, showing how we might be able to flexibly re-use modular hardware if we are successful in our attempts to re-configure control architectures.
So, below I include a brief discussion of the challenges for modular circuit systems 3.1.1 and then the set of circuits that I used to develop the content of this thesis. I call these Knuckles because they aspire to help us spread computing and control into the joints and nodes of our networks. Section 3.2 enumerates the control modules, 3.3 explains a swappable network hardware layer that I develop (which allows us to re-use modules across different network link layers, basically a meta-connector) and in Section 3.5, the nodes that I developed as dedicated message passing devices. In the discussion section, I highlight some of the ways that I have used these boards, showing device re-use in Section 3.6.1, and machine retrofitting in Section 3.6.2. I close the chapter by discussing the importance of ecosystem hackability (3.7.3) and some thoughts (3.7.2) on the relationship between power networks (which should be Directed Acyclic Graphs (DAGs)) and data networks (which, ideally, can be Cyclic Graphs).
3.1.1 Challenges in Modular Hardware Design
One of the primary challenges that sets modular hardware apart from modular software is that hardware is more difficult to make generalizeable; not only do specific tasks require specific hardware arrangements, components also need to interface across variable networks and at variable power levels. For example even though motor drivers are all essentially the same, there is a broad range of particular motors to drive, each needing e.g. more or less current, voltage, and variable packaging. Besides trying to generalize circuit modules for different tasks, we may want to deploy them in different contexts: motor controllers can be found in battery powered robots or drones, or in mains-supplied machine systems (each running on different voltages). There is also a heterogeneity of networking solutions available in mechatronic systems (which I discussed in 2.1.1): users of hardware modules may want to integrate a new device on a CAN Bus, over Ethernet, or simply via USB or UART, etc. All of this means that even for the same core function, we need to develop many possible pieces of hardware to appropriately suit the task and context. In software (where modules are more common), computer languages, package managers, operating systems and compilers make it easier to deploy the same lines of code in different contexts; we hardly even think about it when we can write code on our PC’s and then have it run identically in a datacenter, or on a different instruction set, etc.
Another challenge for modular hardware design is to develop a set of modules that can be broadly applied across different tasks. From an economic perspective, it is more productive to develop a smaller set of modules and apply them to many tasks to better amortize module engineering costs. From a systems engineering perspective, it is better to make general purpose modules that can be applied across many tasks because this means systems assemblers can pick from a smaller catalog of parts to accomplish their goals. Of course this is most of why we want to build modules in the first place: by breaking a system into parts, we can easily re-assign those parts in new systems. The challenge is in making performant and simple modules that can also be “assignable” to many different tasks. Much of that challenge applies more to the programming models within our devices, but the hardware matters as well.
3.2 Knuckles Devices
The current kit of circuits includes five devices, which are all below. This set — and some ad hoc inclusions (3.7.3) cover the tasks in this thesis. I use a mixture of microcontrollers (mcus); SAMD21’s for simple boards, SAMD51’s for the stepper driver, and more recently the RP2350. The availability of cheap, high-powered microcontrollers is a big part of what makes this project possible.
The closed-loop stepper driver appears the most frequently, I write about it at length in Section 4.4.
The hbridge driver is useful in many contexts as a generic DC load driver. I discuss those in Section 3.6.1.
The load cell amplifier can sample at nearly 4kHz. I use it to measure pressure for modelling polymer flows in Chapter 5.
I developed the accelerometer module recently, but have not completed writing its firmware. I discuss its future utility in Section 4.9.3.
The deadbugger (named after the ad hoc electronics assembly practice of building deadbug circuits [1], [2]) is an odd module; I developed it to cover edge cases in modular systems where we simply want to turn something on or off, and to drive 5V loads like hobby servos. It is essentially just a SAMD21 microcontroller, with our network interface (below), exposed connectors / pads, and a large 5V regulator. I discuss it as well in Section 3.6.1.
3.3 Knuckles Backpacks
One of my ongoing frustrations with circuit development was that the board designs were often coupled to systems design. I would build a new networking layer, design a series of circuits for that layer (including the correct connector and interface hardware), and then I would subsequently improve or modify the networking layer, rendering that set of circuits defunct. This was seriously unproductive, but is representative of something that is true more broadly in networked hardware: link layers are heterogeneous.
That is to say, in different systems contexts, we want to use different types of networking. In a high performance machine controller, we probably reach for EtherCAT, ProfiNET (etc) — but these are expensive and complex to integrate. For small systems with just a few devices, a simple USB connection to each module is sufficient and productive, since everyone has USB hardware already “lying around” [3]. In the middle ground we can use simple wired links like CAN or ad hoc UART based busses, and for remote systems we want to implement wireless links like BLE, WiFi or (for long ranges) protocols like LoRa. Ideally, we would be able to mix and match these systems — using some wireless devices, some wired, etc.
To counter this issue, I began developing what I call backpacks. These are PHY level modules; they interface from our devices’ microcontroller to various links. Early backpacks used a simple eight pin header to interface between devices and link layers, some of which I show in Figure 3.7.
Using backpacks means that I can build \(A:\) a set of modular circuits and \(B:\) a set of modular PHYs, and rapidly combine them depending on the context rather than filling out the \(A \times B\) matrix of unique circuit designs.
Backpacks use two 2x3 spring-loaded connectors to connect to exposed pads on the host module. They mount to that module using surface-mount standoffs: through-hole standoffs on the backpack, and threaded (M2 size) on the module. The stand-offs do double duty as power connectors, they are rated to carry up to 70 Amps of current. The Backpack interface is \(20 \times 17.5mm\), with standoffs \(15mm\) apart on center. It specifies a pinout, which is below in Table 3.1.
| Pin | Name | MCU Pin / Peripherals | Note |
|---|---|---|---|
| Standoffs | — | — | — |
| GND | Power Ground | n/a | |
| VCC | Power Voltage | n/a | |
| Left Col | — | — | — |
| GND | Data Ground | n/a | |
| 5v | 5 Volts Ina | n/a | Sourced from Network |
| GP0 | GPIO 0 | Any / GPIO | |
| GP1 | GPIO 1 | Any / GPIO | |
| DM | Data Minus | USB_DM, LVDS_LO | |
| DP | Data Plus | USB_DP, LVDS_HI | |
| Right Col | — | — | — |
| 3v3 | 3.3 Volts Outa | n/a | Sourced from Module |
| ID | ID / Type | ADC | Backpack Identifier |
| CS | Chip Select | SPI_CS | |
| CLK | Data Clock | SPI_SCLK, UART_CLK, I2C_SCL | |
| TX | Transmita | SPI_COPI, UART_TX, I2C_SDA | |
| RX | Receivea | SPI_CIPO, UART_RX |
a Names are relative to the module, so e.g. Transmit is data departing the device, Receive is incoming, and 3v3 out is sourced from the module, whereas 5v in is sourced from the networking device. I discuss this choice in 3.7.2.
A complete spec would need to include more detail like power requirements and ratings, voltage levels and permissible data rates for signals, etc. This is a prototype. A few notes on the design of the pinout:
- The ID pin is connected to a voltage divider on the Backpack: by specifying resistance levels in that divider (the top of which is connected to 3v3), microcontrollers can read the voltage to ascertain which type of backpack is connected. This is an ad hoc solution to the problem presented by the intended use, where modules can load variable drivers on boot to run backpacks that may have been swapped since the last firmware update.
- I specify that the 5v pin delivers “logic” power to the module, and the 3v3 pin returns regulated power to the backpack. In retrospect, this was an odd choice when compared to other modular systems where it is typical that modules include their own voltage regulators, stepping down from their “main” power input, i.e. high voltages in the case of motor drivers. This arrangement assumes a tighter integration between network power supplies and modules. However, it makes it very easy to outfit simple sensors (that only require logic-level power), and to power devices’ microcontrollers to configure them before delivering potentially dangerous levels of power.
- Many pins do double duty, i.e. CLK, TX and RX are available for either UART, SPI or I2C integrations. I presumed that use of these peripherals would be mutually exclusive on any given backpack. Modules are free to implement as many of these as they like, and replace empty sets with general purpose GPIO or connect all peripherals to anticipate variable backpacks. However, the pinout should be modified to clearly reflect which are available on the module.
- Adding interconnect can cause degradation and crosstalk or very high speed signals and network connectors are carefully standardized for this reason. The latest swappable memory modules for modern laptops LPCAMM2 [4] [5] (for Low Profile Compressed Memory Module) uses a similar design pattern to these backpacks (but much more advanced) and supports clock speeds of \(4.8 \text{GHz}\). These are known as Land Grid Arrays (LGA) and can also be found between personal computer and server CPUs and motherboards; they work well because they keep the total length of the connector small, in LPCAMM2 the face-to-face height is either \(0.6\) or \(1.0 \text{mm}\), the connectors I use are similar at \(1.2 \text{mm}\). To support extreme data rates however they also interleave ground pins with data pins to minimize crosstalk, which this connector does not do.
The UART/RS485 Backpack (above, 3.9) connects the module’s UART peripheral to others over RS485 (a voltage signalling standard), using a 10-pin IDC connector and cable. This technology is extremely simple and common, but (with well written firmware) can be very high performance.
The USB Dually Backpack (above, 3.10) connects one USB-C connector to the module’s mcu, and the other to a USB Power Delivery Decoy chip, which handles the protocol required to request high voltage power from modern USB-C chargers and power banks. This lets us connect to and power machine systems or modules using ubiquitous power supplies.
In many cases, the host microcontroller contains the hardware required to interface directly into the physical layer — i.e. the link layer logic is implemented in the host microcontroller. For example just about every microcontroller on the market includes one UART peripheral, and probably one SPI, and often a USB block. In these cases the backpack interface lives between OSI layer 2 (Data Link) and 1 (Physical, aka PHY). For example the backpack at the left of Figure 3.8 promotes UART TTL (Transistor-transistor Logic, which comes directly out of the microcontroller) to RS485 — a larger, differential voltage level that improves noise immunity. The microcontroller can easily implement the protocol that promotes that UART peripheral (which simply sends and receives bytes) into a proper Link Layer (encapsulating packets and catching errors). For some more discussion on how these layers are organized, see Section 2.3.1.
It is common for more complex link layers like EtherCAT and BLE to be integrated via standalone link layer controllers. This is because link layer operation is a time critical task, and microcontrollers that are running application code are not guaranteed to be available to handle packet frames in time. In these cases, it is common for the link layer controller to be interfaced to the host microcontroller using another protocol that is effectively hidden in the OSI layers model. For example EtherCAT and Ethernet controllers are normally connected via SPI, USB controllers via UART, etc. These can be accommodated in the backpack ecosystem, integrating the link controller on the backpack and mounting those SPI / UART connections via the backpack pinout.
I want to note that this sneaky insertion of (what is effectively) an additional network link in the OSI model is a common design pattern in embedded device development. There is even a set of standardized link-controller-to-phy interface for Ethernet: the MII/RMII [6] [7] (Media Independent Interface, or the Reduced version) enables Ethernet to be broadcast across various media: these are, again, effectively GPIO specifications. In optical networking, we find things like Small Form-factor Pluggable “network interface modules” (SFPs) [8] that allow individual ports to be reconfigured to use different types of transceivers. These are often even hot-pluggable.
Obviously the sticking point is that we would all have to agree on the backpack layout. While this may seem unlikely, I would contend that it is a design pattern worth looking at. GPIO based interfaces have already been productive in open hardware, and even have two apparent hardware-design rivals (Adafruit and Sparkfun) sharing one design pattern in Qwiic / Stemma (they are the same thing). The shared value in such design patterns is the tricky engineering on either side of the interface doesn’t have to be duplicated relentlessly.
3.4 Knuckles vs. NICs
In Section 2.2 I surveyed some existing distributed systems architectures. Of course most of those are based on existing network stacks: IP-based or fieldbus-based systems like CAN and EtherCAT. However, simpler microcontrollers tend not to include peripherals to interact with these stacks, even USB peripherals were rare until recently. They do have simpler communications peripherals like UART and SPI: these are not network links, they merely serialize data from the microcontroller’s memory into sequences of voltage signals on the device’s pins.

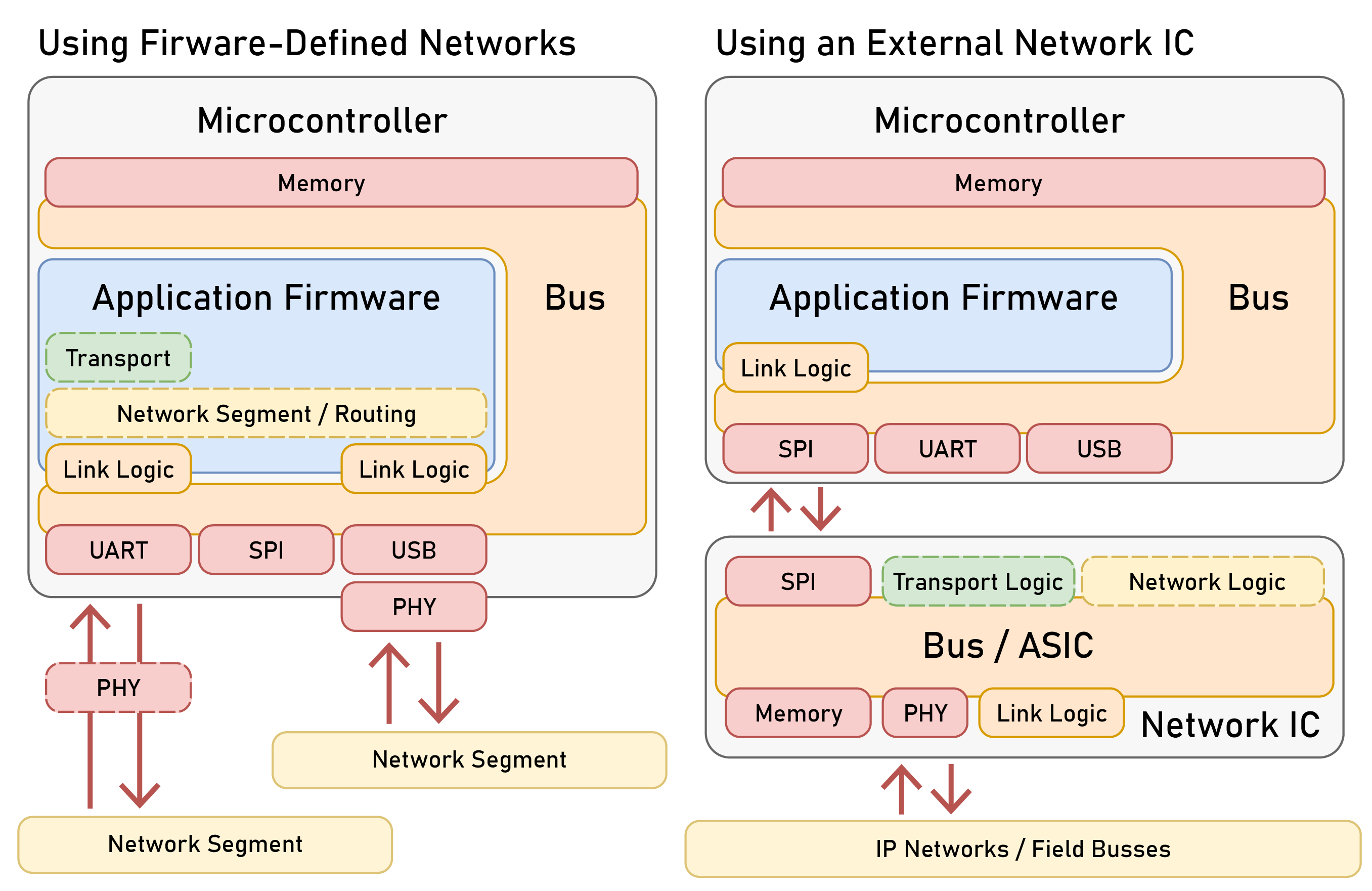

To connect to external networks we have NICs (Network Interface Controllers), these are integrated circuits that offload networking routines into a dedicated ASIC and subsequently communicate with embedded devices over a NIC-specific SPI or UART based protocol. This is architecturally similar to how bridges work to connect embedded devices to IP-based middlewares, see Figure 2.24 in Section 2.6.1.2.
The advantage of course is to enable operation with these networks where no peripheral exists on the microcontroller to do so. Another advantage is that they effectively add computational power to the microcontroller, which no longer has to compute packet checksums / handle the arrival and transmission of bytes onto the network’s PHY etc.
The disadvantage is in cost and complexity and in timing: the SPI or UART bridge between the two IC’s is another hidden link in the network that adds its own delay and bandwidth limits. It can also require configuration of the NIC over the SPI or UART connection, meaning that network state now spans the two ICs. There is still some protocol here which adds complexity, and at the end of the day the MCU still needs to read and write the bytes that will go out on the network, so it is not entirely unburdened.
The alternative is to connect SPI, UART etc. directly to the network and build software-defined fieldbusses and point-to-point links. This is common practice and I used one-such design extensively in this thesis, a UART link that is promoted to RS-485 signalling through a ribbon cable. The strategy burdens the microcontroller with link layer control (error detection and packet framing), but allows us to directly write packets onto network segments. Moving network interface definitions into firmware (for firmware-defined links) also enables flexibility — when combined with the Knuckles backpack, we can reconfigure circuits and software to be used across types of network.
The disadvantage to this strategy is that it is not standardized. Although building a custom fieldbus can often be simpler than using an existing solution it of course prevents interoperation with off-the-shelf or other existing devices.
3.5 Knuckles Hubs
OSAP and PIPES are agnostic about device network architectures, i.e. there is no distinction made between “routing” devices and “endpoints.” This means that any Knuckles device can implement multiple backpack connectors, enabling it to connect to more than one device and serve dual duty as a device and a kind of network router. In practice, networks are faster overall when their graphs are short, e.g. where we have very fast routing devices with very many ports, keeping the total number of hops between devices low. For this, I developed one hub device (pictured below), that uses a high performance microcontroller and has five Backpack interfaces. In addition to use in message passing, we can implement some firmware here for system control and management.
The hub also provides some power management functions: we can shut off downstream ports’ logic (5v) and device power (0-48v). This provides a convenience for configuring systems-level safety: the hub can turn system components off when i.e. watchdog conditions are not met in the case of watchdog hangups or other failures. It is also valuable to be able to remotely reset devices by simply power cycling them.
3.6 Using Knuckles
3.6.1 Device Re-Use
In the introduction to this chapter I discussed how we would like to have hardware modules that are generalizeable across tasks. While this is primarily a challenge in the development of module firmware and control, the hardware also needs to be designed with enough affordances that it can be reconfigured.
HBridge connect electrical loads to voltage and ground through either a forwards or backwards path using four switches arranged in an “H” looking configuration, hence the name. They are most often used to drive DC motors, but of course any generic electrical load is valid: heaters, solenoids, etc. We can also use each leg independently to drive separate uni-directional loads (each being used as a “low side switch”).
On the HBridge knuckle, I included a connector for the HBridge’s outputs, and also an input for a thermistor (to read motor or other temperatures), and a generic three-pin connector, hooked up to an ADC - we often simply want one other pin to connect to the world.
I used the HBridge in three contexts. To drive solenoids for the CNC Xylophone’s Mallets (2.7.10.1), we simply connect the solenoid as a DC load across two of the HBridge’s outputs. To drive a hobby servo (which uses a DC motor), we connect the HBridge as intended to the two motor leads, and can use the generic three-pin connector to read the servo’s position feedback encoder (which is a simple potentiometer). In the FFF 3D printers in this thesis (5.4.1 and 5.4.2), I use one leg of the HBridge to run the nozzle heater, the other half to run the Part Cooling Fan, the thermistor input to read the nozzle temperature, and I use the 5V that is exposed on the generic three-pin header to power the hotend’s cold side cooling fan.
Because we define machines “across” firmwares, we can also mix modules’ functions across devices. For example the Prusa Core One, which becomes the FrankenPrusa in this thesis (again, 5.4.2) has a filament detection sensor (a GPIO, switch) and a hotend cold side thermistor (to detect heat creep). The HBridge, which I had tasked here to control the hotend peripherals, was out of spare connectors in this case - but I could simply wire those two sensors into the motor controller’s spare inputs. We can then easily rename these inputs in software to reflect their physical configuration. Again, this flexibility helps us to avoid developing new circuits while we go about building new machines.
I was able to use the Deadbugger in two contexts as well: to drive hobby servos as they are intended (through a PWM interface), and to control spare peripherals on the RheoPrinter: a line laser and an LED driver, both used for print inspection.
In some of these cases, we can write device firmwares to anticipate re-use by keeping the firmwares themselves stateless — just exposing their low-level interfaces so that inputs and outputs to those interfaces can be configured or renamed appropriately in software. However, some require lower level changes. The simple solution to that issue at the time of writing is to modify the firmware for each new context, redefining the hardware as a new device. This is at least simpler than authoring an entirely new firmware, as the networking code and hardware layers are the same: we essentially just reconfigure the device’s API. This serves well enough and has been a productive tool during my time developing machine controllers, but in the future I would like to expand PIPES to enable on-the-fly reconfiguration of embedded codes using dataflow configurations as I discuss in Section 2.9.2.1 and as I explored in my masters’ thesis [9].
3.6.2 Retrofitting Machines
I used the Knuckles kit to control my own hardware, but also to retrofit the Prusa in Section 5.4.2. Besides allowing me to compare my printing workflow to the state-of-the-art (5.10), it also gives us a one-to-one comparison in the practice of systems integration: an established product design vs. an ad hoc assembly of modules.
I was surprised that the modular set of controllers, which we would expect to mean overall more controller, is about equal on total board area. I think a lot of this has to do with wiring: most of the Prusa’s control board area is actually taken up by connectors. The same is true of ours. On two-sided boards especially, it is in many cases easy to saturate board area (and definitely board perimeter area) completely with the desired connectors; whereas IC’s and passive components continue to shrink, connectors cannot become vanishingly small because we need to manipulate them with our human-sized fingers, and because contact resistance of two metal blades has not fundamentally changed, leading to size limits that emerge from heat dissipation and management in power connectors.
The rear end of the retrofit (above) is certainly messier than the shipped product, but not egregiously so. I added to their power supply a bleeder resistor (the orange aluminum block) and large bypass capacitance (blue cylinders), to help linearize the power into the FOC Steppers. The chassis wiring removed (below) is a much more heterogeneous set than in our retrofit, where a network connector lets us homogenize the main wiring harness. This is where IDC connectors and Ribbon Cables shine: we can easily make polarized, terminated cables of any length without the requirement for time-consuming and detailed work of wire crimping.
However, this practice takes for granted that we relocate the control circuits to where the relevant hardware is, as in Figure 3.18. We do not entirely remove the requirement for “terminal” wiring (connectors below), where our modules connect to the plugs and wires that are integrated into the actual pieces of hardware we are controlling.
The actual electrical interface to the Prusa is quite thin: four connections to each motor, some heaters / thermistors, fans, and the load cell. The Prusa (and our controller) doesn’t use limit switches, instead we simply run the servo into the machine’s hard stops; a simple example of turning motors into sensors to reduce complexity.
The modular controllers let us take over the Prusa hardware with relative ease; I use their power supply and connect it to two Knuckles Hubs, which then each connect to motor controllers, heaters, etc. In all it took me about four days to disassemble the Prusa, design some additional mounting brackets for my circuits, characterize motors (4.3.1), and then re-assemble it and begin printing (5.10.1). Were this step to require that I develop a new circuit board for the task, it may have taken up to two weeks to design that board, one or two weeks to wait for it to return from the fabricators, and perhaps another two weeks to write its firmware. In the case of the Prusa, this may have been easier because their hardware is open source — however, their control board does not have enough processing power for the requirements of this project, nor does it have inputs for motor encoders, or motor drive circuitry that can be used in a closed-loop manner.
I also used the Knuckles to control the CNC milling machine from Chapter 6. This system was much simpler than either of the printers, requiring only one Hub and three motor controllers. It also eschews limit switches in favour of homing via motor sensing. In this case, I did not instrument or control the machine’s spindle directly, mostly for lack of time.
3.7 Discussion
3.7.1 The Hardware Partitioning Problem
In some ways, the arrangement of modular circuits and their wiring reflects the partitioning problem that I discussed in Section 1.4.
Here, we mount modules close to the devices they control. In industrial systems, it is more common to co-locate all controllers in an enclosure on DIN rails, and build wiring looms from that enclosure to the hardware itself. Although there are of course cases (e.g. encoders and some other sensors) where the location of some circuitry alongside the relevant hardware is required. Considering that, in some cases, the circuitry required to integrate with a device becomes about as large as the connectors required to plug into it (as in Section 3.6.2), locating controllers alongside hardware begins to make more sense, especially where tight integration reduces overall complexity. This would be driven by hardware component suppliers integrating their components with controllers. There is some emerging practice of mounting electronics within connectors themselves, as in USB-PD cables that are electronically tagged to verify their current carrying capability [10].
Motors are the most common scenario where this is true in the state-of-the-art: the device is quite large, and co-locating the drive circuitry with the hardware has the advantage of minimizing parasitic inductances and resistances that would otherwise exist in long cable runs between a servo controller and the servo’s stator coils. There is also — as mentioned — the issue of the encoder.
3.7.2 About Power Routing and Delivery
In practice, routing power throughout a system can be as cumbersome as routing networks. For prototypes, can be valuable to have one-plug-for-both. In other systems, these concerns are often separated. Because power and networking are both heterogeneous, collapsing those layers would require (again) more unique modules. This is another layer to the hardware partitioning problem.
One of the valuable things that I did develop here is that the Knuckles Hubs also include power switches. They expose Pipes functions that can be used to operate those switches such that were the hubs are used also as power distribution boards remote legs of the system can be power cycled in software. This helped to provide a backup safety scheme and to e.g. automatically turn systems off at the end of a job. But merging all of these layers presented some conflicts as well, for example to ensure that network discovery steps work, a script that looks for devices on the network must also know to turn those devices on via the hub.
This is an issue again when systems are deployed at multiple scales. Whereas the hub can manage power requirements from most small machines’ motion systems, it is infeasible to imagine that it could supply and manage enough power to run the spindle from the CNC machining work in Chapter 6 (which consumes multiple kilowatts of power).
3.7.3 About Hackable Systems
Although the Knuckles represent my attempt to design a set of circuits that would cover the hardware requirements in the systems that I developed here, there is an inevitability of unforeseen requirements in systems assembly. We should aim to develop systems that can easily accommodate these ad hoc inclusions, following the end-to-end principle. This was a concern in OSAP, PIPES, MAXL as well.
One error that I made in the design of the Backpack interface in this regard was not including breakout-board equivalents for either end of the interface: one that could mount to modules and let us solder ad hoc networking technologies onto it, and another that could attach to the Backpack allowing us to integrate ad hoc modules to our existing network links.
3.8 Future Work
I took on the development of these modules because I found that existing open source hardware was not modular at the level that I wanted to explore. Some industrial controllers are modular, but they are not open, so I would not have been able to develop new computing systems for those.
These modules do not constitute the complete set of hardware that would be required to realize the broader goals of the thesis, i.e. extending across industrial sectors into all manner of machine control. That is an activity that is taken on by much larger groups of individuals and firms. That is also why I developed most of the systems integration tools in Chapter 2 to be software defined; they should not require that we modify hardware in order to integrate it into new systems.
So for future work in this chapter I think that a key future goal is to enable others to more rapidly include networking layers in their embedded devices, see Section 8.3. If anything, I would expect that the Backpack interface, (or something like it) would be the most productive component of this system to develop. Module themselves will be heterogeneous because they interact with the world, networking is less so. The proposal in the Backpack interface is to enable networking / physical layer experts to develop those circuit components and then device experts to easily drop those into their projects. For example having designed a motor controller or sensor, good open source Backpack designs may help them to easily add isolated power delivery, battery-powered capabilities, etc. A similar pattern exists in GPIO interfaces like the Xiao microcontroller modules from Seeed Studio. They enable circuit designers to eschew the complex microcontroller-care-and-feeding steps in their circuit designs, and focus on application circuitry.
